Digital Communication :-

Data transmission, digital transmission or digital communications is the physical transfer of data (a digital bit stream or a digitized analog signal) over a point-to-point or point-to-multipoint communication channel. Examples of such channels are copper wires, optical fibers, wireless communication channels, storage media and computer buses. The data are represented as an electromagnetic signal, such as an electrical voltage, radiowave, microwave, or infrared signal.

Block Diagram :-

A digital communication system consists of six basic blocks. The functional blocks at the transmitter are responsible for processing the input message, encoding, modulating, and transmitting over the communication channel.

digital communication system

Multiplexing :-

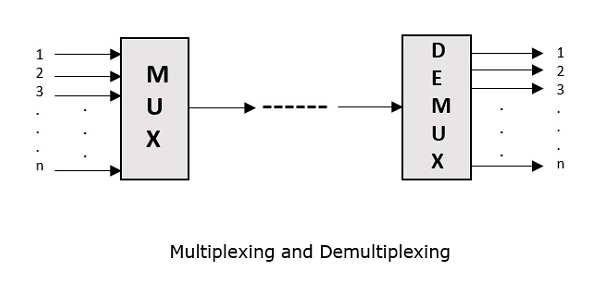

Multiplexing is the process of combining multiple signals into one signal, over a shared medium. These signals, if analog in nature, the process is called as analog multiplexing. If digital signals are multiplexed, it is called as digital multiplexing.

Types of Multiplexers

There are mainly two types of multiplexers, namely analog and digital. They are further divided into FDM, WDM, and TDM. The following figure gives a detailed idea on this classification.

1) Frequency Division Multiplexing (FDM)

The best examples of the FDM comprise signal transmission in TV and radio.

2) Wavelength Division Multiplexing (WDM)

In fiber communications, the WDM (Wavelength Division Multiplexing) is one type of technology. This is the most useful concept in high-capacity communication systems.

3)  TimeDivision Multiplexing (TDM)

The Time division multiplexing (or) TDM is one kind of method for transmitting a signal over a channel of particular communication with separating the time edge into slots. Like single slot is used for each message signal.
